Prodipe Studio22+ USB Audio Interface, 3 Inputs, 2 Outputs

Description from Prodipe:

“The must-have tool for today’s musician

With Prodipe, as per usual, it’s all about the music and the musician. At unbeatable value for money, the Studio22+ USB audio interface faithfully carries on the Prodipe tradition.

Whether you use it for recording, home studio work or live performances, the Studio22+ is absolutely essential for music lovers, amateur musicians and professional musicians.

We have developed an all-round product for you:

The new Prodipe Studio22+ is a first-rate audio interface for Mac and PC. It comes with a USB DAC (digital to analogue converter) and the Prodipe driver, ASIO 2, for near-zero latency (less than 1 millisecond).
Equipped with combined XLR/Jack input, stereo USB input and output, stereo output for monitoring and separate headphone output.
Included is a high quality audio chipset for creating recordings that are ultra smooth and exceptionally warm.
But the Studio22+ is also self-contained, so your mics, instruments, monitor speakers and headphones can all be plugged in directly.

Here are some examples of what you can do with Studio 22+:

Two of you want to perform live and record yourselves at the same time. Use Studio 22+.
You want to play your electric guitar and sing at the same time, but your amp has only one input socket. Use Studio 22+.
You want to play better by listening to yourself through headphones. Use Studio 22+.
You want to use two mics with your acoustic guitar, but your amp has only one input socket. Use Studio 22+.
You want to use a Series 21 mic, but your amp doesn’t have phantom power. No worries – use Studio 22+”

Specifications:

The Studio22+ includes a range of inputs and outputs:

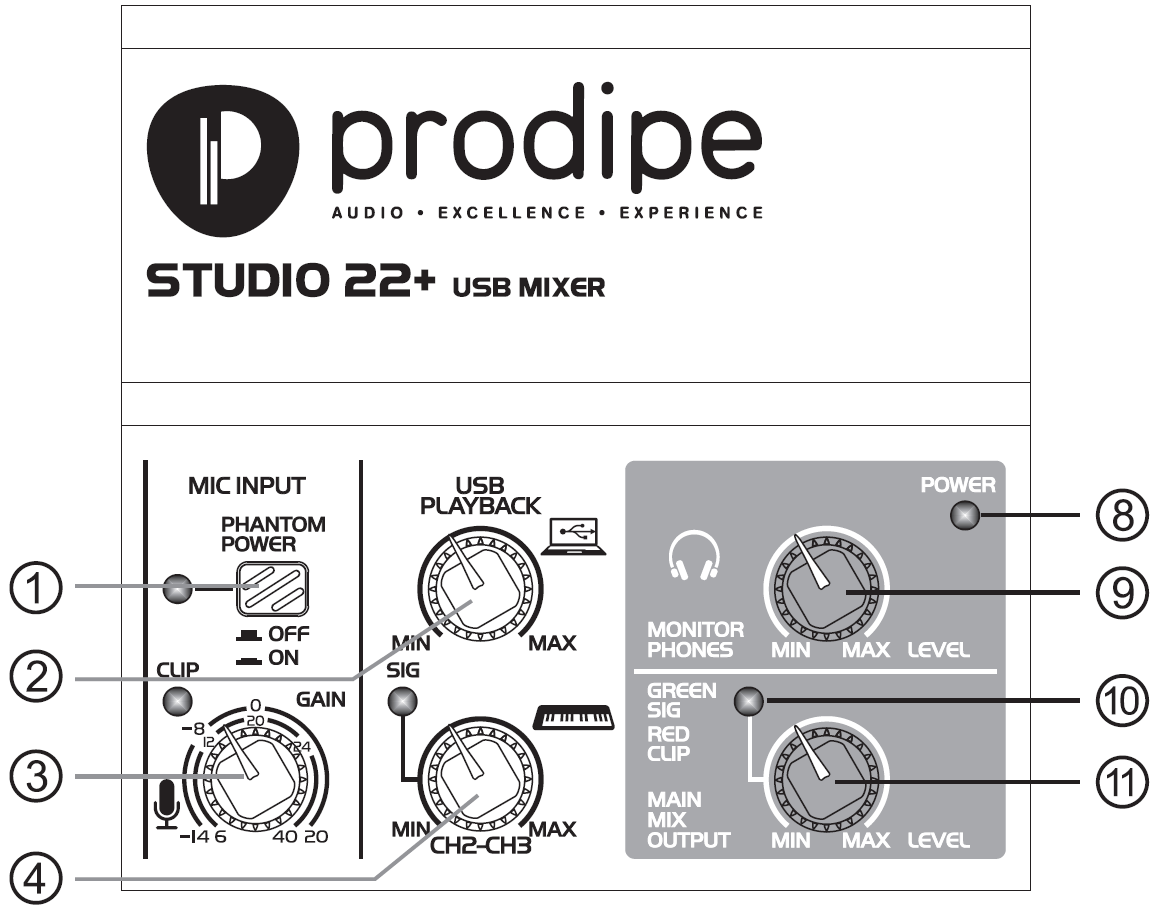

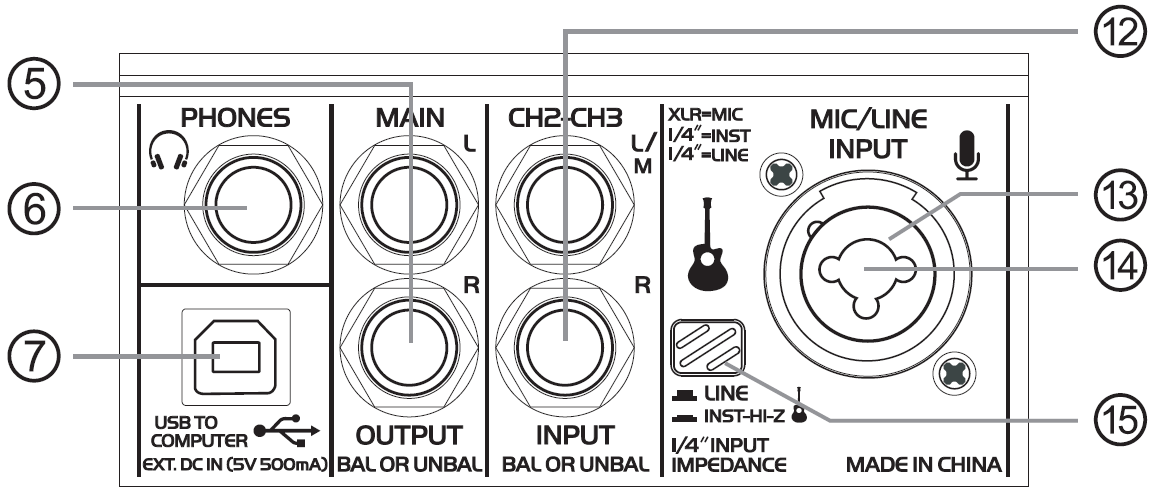

One mono input for instrument/mic:

One balanced XLR combined connector (13) and balanced Jack (14).

Phantom power with ON/OFF switch and LED indicator (1).
Gain control knob (3).

One stereo line/instrument input:

Dual 6.35mm Jack socket (balanced/unbalanced) (12).
Volume knob with LED signal indicator (SIG) (4).

One stereo USB audio port (7) :



One stereo BUS channel (from Mac or PC).
USB volume knob (2).

One MAIN MIX stereo output:

Dual Jack socket (balanced/unbalanced) (5).

MAIN MIX output level knob (11)
“Hi-Z” line/instrument impedance button (15).

One stereo headphone output:

PHONES Jack socket (6).
PHONES output level knob (9)

One stereo USB port (7) :

One stereo BUS channel (from Mac or PC).

General features:

Power LED (green)
Mac OS compatible (CoreAudio)
Windows compatible (Prodipe ASIO 2.0)
USB power (USB A to B cable supplied)
External power supply possible: DC 5Volts/500mA (via USB: USB charger, smartphone charger, etc non supplied )
3 pin XLR connector (IEC 60268 standard), pin 1: ground, pin 2: hot (+), and pin 3: cold (-)
Power consumption: 2.5 Watts (max)
Dimensions: (W x H x D) 109mm x 52mm x104 mm
Weight: 0.5kg
